無錫市德潤輕工機械廠
品類 | 轉鼓 | 品牌 | DESH |
---|---|---|---|

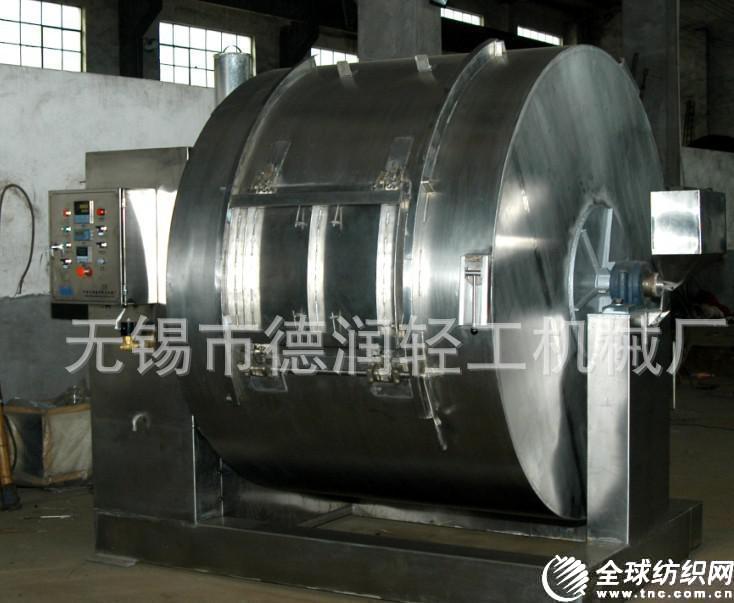

型號 | 不銹鋼控溫轉鼓 |
性能:
*整機鼓體機架采用不銹鋼制作、使用壽命長。
*采用熱泵循環加熱,停鼓時能加熱恒溫。
*無級變速,速度快慢可調(0-20轉分)。
*自動加溫,恒溫,溫度控制正確(0-70℃±1℃)
*全新快啟式鼓門,操作方便。*可卸式鋼化玻璃觀察窗.
*加熱液和鼓內液體分離,清洗徹底,無殘液和廢渣。
*電加管使用壽命長,電機使用壽命長。
*設工作時間總定時,定時正反轉動,調節時間(0-30)分,也可單方向轉動。
*設有夜間工作系統,在皮液過夜時可控制溫度,定時轉動、使鼓體內的皮毛及時翻動,染色更均勻,防止皮張長時間應停鼓而壓出壓紋和染色不均勻及低溫情況下過夜時測出和數據不正等情況.
properties:
* the drum of frame made by stainless steel, long service life.
* using heat pump cycle heating, stop when heating temperature can drum.
* stepless speed, speed, speed adjustable (0 to 20 turn points).
* automatic constant temperature, heating, temperature control right (0-70℃±1℃)
* new fast rev. type drum, easy operation. door * removable type toughened glass windows.
* heating fluid and inside the drum liquid separation, cleaning thoroughly, no residual liquid and waste residue.
* electricity and tube service life is long, motor long service life.
* a total of timing, timing work time of positive and negative rotation, the regulating time (0 to 30) points, also can a single direction.
* a night work system, liquid in the skin for the night can control temperature, time, make the body of the rotating drum fur dyed in time to turn
型號model | gi1500 | gi1501 | gi1800 | gi1801 | gi2000 | gi2500 |
規格size(mm) | φ1500*1000 | φ1500*1200 | φ1800*1200 | φ1800*1500 | φ12000*1500 | φ2500*2000 |
裝皮量(kg)max loading capacity | 130 | 150 | 280 | 320 | 450 | 650 |
工作轉速speed | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | 0-15 |
控溫范圍control temperature range | 0-70℃ | 0-70℃ | 0-70℃ | 0-70℃ | 0-70℃ | 0-70℃ |
電機功率motor power(kw) | 18 | 18 | 18 | 18 | 18 | 18 |
重量weigth(kg) | 1800 | 1850 | 2450 | 2500 | 3200 | 4200 |
