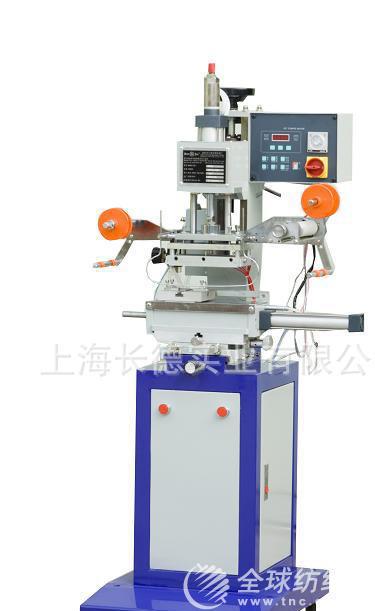

h168s氣動平、圓面燙金機

技術參數parameter：

燙板面積heating plate size：100×168mm

工作臺尺寸work table size：108×108mm

燙印頭行程stamping stroke：25mm

燙印溫度選擇范圍stamping temp range：室溫-280度

*大工件高度max work piece height：95mm

燙印壓力選擇范圍stamping pressure：<130kgf

*大燙印速度max printing speed：1000pcs/hr

電源power：220v 50hz

發熱功率heating power：900w

氣源壓力max pressure：4-7bar

耗氣量air consumption：<58l/min

外形尺寸dimensions：630×580×1385mm

功能特點features：

1、 微電腦程序控制，氣動元件驅動。

microprocessor controlling, pneumatic units driving

2、 燙印壓力，溫度，時間可調。

stamping pressure, temperature and time adjustable

3、 工作臺可手動前后移動，便于安全快速操作。

   worktable could be adjustable for forth/back move, easy and safe operation

4、 工作臺可前后、左右、旋轉調節。

worktable could be adjustable for forth/back, left/right position,as well as turned slightly

5、 自動送紙、收紙、并可調。

auoto and adjustable paper feeding, collection

6、 根據工件的不同高度，可以分別通過手柄和氣缸調程螺母調節燙印頭的高度和氣缸行程。

according to different height of various substrates, stamping height adjustment through turning handwheel and stamping stroke adjustment by turning knob

7、 用于燙印圓面工件；卸下梭動工作臺即為平面燙金機。

available for bend and cylindrical substance printing, dismantle shuttle table for flat printing
