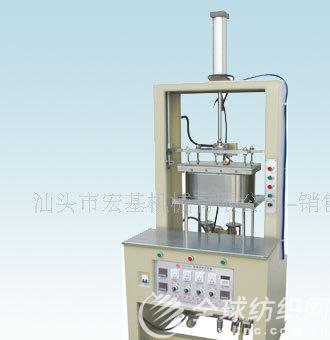

kv-168d/d-9 氣動子彈頭定型機

kv-168d/d-9 bullet head bra cup molding machine

用途：

該機適用于各種布料。子彈頭模具的熱壓定型。

特點：

1.子彈頭可根據客戶對產品的不同需求隨意調換。

2.整機發熱均勻，加溫速度快，生產效率高。

3.操作方便，省電，省時，成型一致。

4.按鈕雙手操作，確保生產安全。

技術參數：

1.電源/功率：220v/4kw

2.電熱片規格：φ12×250mm×500w-220v φ16×150mm×700w-220v

3.模臺尺寸：450mm×300mm

4.機臺尺寸：800mm×720mm×2100mm

5.適用物料：文胸、服裝等面料

6.適用模具：文胸棉模及定布模具

7.重量：250kg

function：

this machine is suitable for molding various fabric bra cups by the bullet head moulds’ themal-pressing.

features:

1. the bullet head can be adjusted freely according to the different requirements of the customers.

2. the whole machine heats evenly, has rapid warming-up speed and high production efficiency.

3. it is easy to operate and of power-saving, time-saving and consistent molding.

4. the buttons are controlled by both hands, ensuring the production safety.

technical parameter:

1. power supply/power: 220v/3.4kw

2. specification of the electrothermal piece:

φ12×250mm×500w-220v φ16×150mm×700w-220v

3. dimension of the mould table: 450mm×300mm

4. dimension of the machine: 800mm×720mm×2100mm

5. applicable material: fabric for foam bra and other garments

6. applicable moulds: the moulds for foam bra cup and fabric cup

7. weight: 250kg

 歡迎廣大用戶來電咨詢，聯系人：陳佩英（手機：15817935595）；e-mail：, qq:80118865;謝謝您的支持！
