(5) 本公司針對內衣模杯生產開發的特有溫度控制系統，運用可控硅移相觸發電流控制加熱，可使發熱更均勻、平穩、省電，節能效果佳，并可延長發熱管使用壽命。

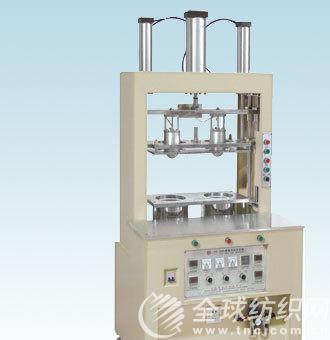

usage of machine：it is able to mold rigid fabric cup ( non stretch fabric ) and also elastic fabric cup and space fabric etc. as it is using conical shaped moulds with adjustable molding depth, so it can mold elastic fabric to get suitable cup shape for matching the foam cup shape for stitching & sewing them together.
merits：machine equipped with air cylinder pressing plates and convinient to control fabric tension and reduce and avoid fabric pulling while molding.
capacity：machine is able to load one set of bullet head aluminum mold with 2 cavities, which can produce 1 pair of fabric cup per cycle within molding time 35 to 45 seconds.
features:
(1) the bullet head can be replaced freely according to the different needs of the customers' products.
(2) it is easy to operate, saving electricity, time and forming consistently.
(3) the button is operated by hands so as to ensure the security.
(4) it adopts spring-pressing frame to press fabric material, which can effectively control the withdrawing of the fabric and has a good forming effect.
(5) to direct at the specific temperature control system in the development of bra cups production, we utilize silicon controlled phase shifting triggering current to control heating. so, it can make the temperature more even and steady with remarkable energy-saving efficiency and it will prolong the heating tube's service life.
technical parameter:
power supply/power: 220v/3.4kw
specification of the heating piece: φ 12×250mm×500w-220v
dimension of the mould table: 450mm×250mm (selection)
dimension of the machine: 850mm×685mm×1900mm
applicable materials: the hot-press molding of the fabric
applicable moulds: moulds for fabric cups( bullet head moulds )
weight: 300kg
